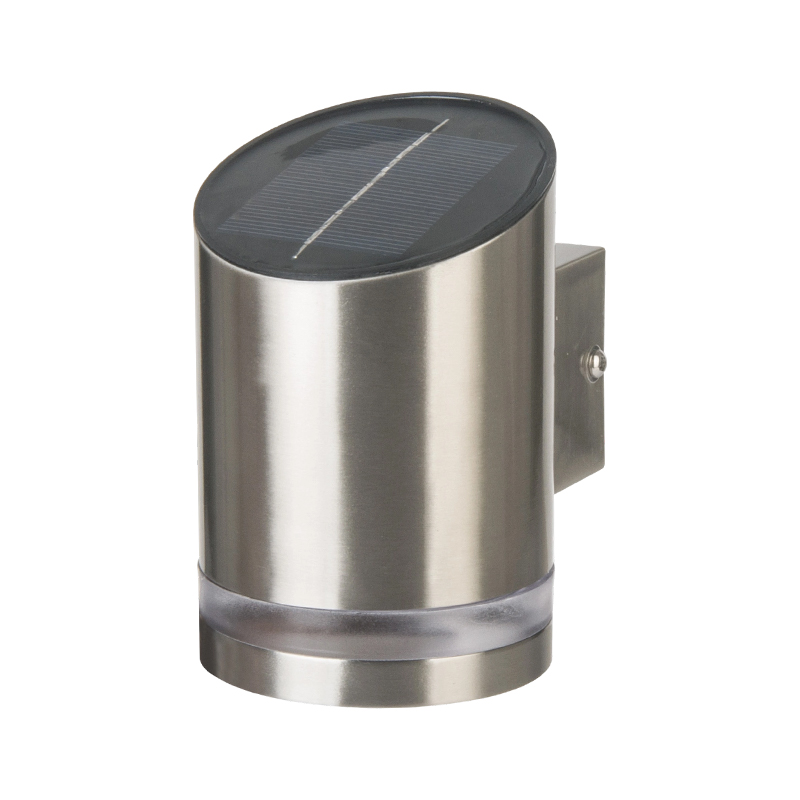

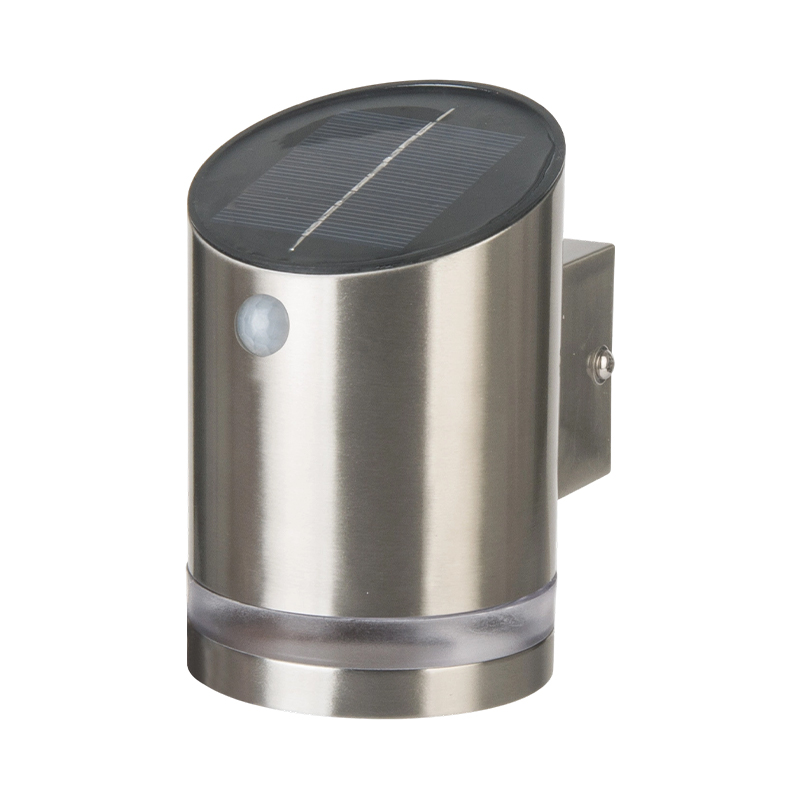

Slanted Top Stainless Steel Solar Motion Sensor Wall Light

Home / Products / Solar Wall Lights / Slanted Top Stainless Steel Solar Motion Sensor Wall Light

Slanted Top Stainless Steel Solar Motion Sensor Wall Light

Product Model: YA11151B

The Slanted Top Stainless Steel Solar Motion Sensor Wall Light is an outdoor wall lighting product for distributors, wholesalers, contractors, lighting suppliers, and property projects. Its stainless steel construction, angled upper profile, integrated solar system, and motion sensing function provide a practical option for exterior lighting ranges and project supply.

Contact Us
  • Product Information
  • Contact Us

Applications
The Stainless Steel Solar Motion Sensor Wall Light can be incorporated into outdoor lighting programs for properties, landscapes, and building exteriors.
Residential Projects: An Angled Solar Wall Lamp can be supplied for villas, housing developments, garden walls, entrances, and boundary areas.
Commercial Buildings: Suitable for offices, restaurants, service areas, exterior corridors, and building access points.
Landscape Projects: A Solar Motion Wall Sconce fits pathways, courtyards, landscaped walls, and outdoor circulation areas.
Property Renovation: Suitable for contractors and project purchasers replacing or extending existing exterior wall lighting.



Core Features
1800 mA Battery Capacity: One 18650 battery operates at 3.7 V with a specified 1800 mA capacity for rechargeable energy storage.
0.5 W Solar Input: The polycrystalline solar panel provides 0.5 W of solar charging power for off-grid operation.
Motion-Activated Operation: An integrated motion sensor enables lighting response to movement around the installation area.
3-LED Configuration: Three 5730 SMD LEDs provide the light source within the compact wall fixture.
0.5 W LED Power: The LED system uses 0.5 W, matching the low-power solar configuration.
Stainless Steel Housing: The stainless steel lamp body provides a metal construction suited to exterior wall applications.



OEM Customization Service
For the Angled Solar Wall Lamp, we provide OEM support for lighting brands, distributors, wholesalers, and project suppliers.
Housing Requirements: We can review stainless steel housing specifications and structural requirements for different product ranges.
Electrical Configuration: LED, solar panel, battery, and motion sensor specifications can be evaluated according to project needs.
Product Adaptation: The Solar Motion Wall Sconce configuration can be discussed for different installation and operating requirements.
Branding: Product labeling and packaging arrangements can be coordinated for private-label supply.
Order Planning: OEM production starts from 500 units, with an approximately 30-day lead time.



Production Service
Our production process for the Slanted Top Stainless Steel Solar Motion Sensor Wall Light includes component assembly, functional inspection, and shipment preparation.
Component Assembly: Stainless steel bodies, 5730 SMD LEDs, solar panels, motion sensors, and 18650 batteries are assembled according to approved specifications.
Functional Testing: Motion-sensing operation and solar-powered lighting functions are checked during production.
Power Verification: The 0.5 W solar panel, 0.5 W LED system, and 3.7 V / 1800 mA battery are checked against specifications.
Batch Production: Orders from 500 units can be arranged with approximately 30 days lead time.
Shipping: Finished orders can be shipped by air or sea, with T/T payment supported.



FAQ
1. Where can an Angled Solar Wall Lamp be installed?
It can be used on exterior walls, entrances, garden boundaries, courtyards, pathways, and other outdoor areas.

2. What controls the lighting activation?
The integrated motion sensor detects movement and activates the lighting according to the product's operating configuration.

3. What battery is used in the Solar Motion Wall Sconce?
It uses one 18650 battery rated at 3.7 V with a specified 1800 mA capacity.

4. How many LEDs are included in the product?
The Slanted Top Stainless Steel Solar Motion Sensor Wall Light contains 3 pcs 5730 SMD LEDs with a total specified power of 0.5 W.

5. What is the minimum OEM order quantity?
OEM orders start from 500 units, with a stated lead time of approximately 30 days.



Parameter Specification
Model No. YA11151B
Lamp Body Material Stainless Steel
Product Dimensions 89 × 117.5 × 127 mm
LED Type 5730 SMD LED
LED Quantity 3 pcs
LED Power 0.5 W
Solar Panel Type Polycrystalline Solar Panel
Solar Panel Power 0.5 W
Battery Type 18650 Battery
Battery Quantity 1 pc
Battery Voltage 3.7 V
Battery Capacity 1800 mA
Sensor Motion Sensor
